A driverless pallet forklift that moves loads of up to 2,000 kg on its own. It maps your site, plans its route, avoids obstacles and goes back to charge by itself. No driver, no floor tape and fewer hazards on the floor.
Tap the hotspots to explore the hardware, or step through a typical job on the right.
At setup, RoboLift learns your floor layout. No tracks or tape needed.
Send a job from its screen, a phone or PC, or straight from your WMS / MES.
Plans the best route and steers around people and obstacles on the way.
Lines up with the pallet, lifts it and delivers it to the right spot.
When the battery runs low, it goes back to its charger on its own.
Picks up, moves and drops loads by itself, positions precisely and returns to charge on its own.
Works with different racks, pallets and load types, with several handling modes to choose from.
Several layers of obstacle detection, an emergency stop and electromagnetic brakes.
Manage from a PC, tablet or phone, and run several forklifts together with central scheduling.
Moves through narrow aisles and passageways, and can use lifts to work across floors.
Links with warehouse and production software (WMS / MES) to take tasks automatically.
Forklift traffic is one of the biggest hazards in any warehouse or factory. RoboLift takes the human out of the driver's seat and makes every move predictable, cutting the risk of collisions, crushed feet, falling loads and strain injuries.
No operator rides with a two-tonne load, and no one has to push or pull heavy pallets by hand.
Several layers of obstacle detection. It slows down and stops for people, other forklifts and stray pallets.
Fixed lanes, speed limits in shared zones and the same route every time, so your people always know where it will go.
Electromagnetic braking and a mast-mounted emergency stop that halts it instantly.
The 3 a.m. shift is as precise as the first hour of the day. No tiredness, no phones, no shortcuts.
Precise positioning and controlled lift and descent speeds mean fewer knocked uprights and dropped loads.
| Load and dimensions | |
|---|---|
| Rated load (Q) | 2,000 kg |
| Vehicle length × width | 1,645 × 850 mm |
| Navigator bracket height | 1,890 mm |
| Load centre distance | 600 mm |
| Load distance | 865 mm |
| Wheelbase | 1,150 mm |
| Vehicle weight | 370 kg |
| Forks | |
| Fork dimensions (L / W / T) | 1,150 / 170 / 60 mm |
| Fork outer distance | 680 mm (standard) |
| Fork ground clearance | 85 mm |
| Fork ground clearance (when raised) | 40 mm |
| Performance | |
| Travel speed, full / empty | 1.0 / 1.5 m/s |
| Lift speed, full / empty | 40 / 50 mm/s |
| Descent speed, full / empty | 50 / 40 mm/s |
| Max. climbing, full / empty | 3% / 5% |
| Turning radius | 1,360 mm |
| Right-angle aisle width | 1,960 + 200 mm |
| Drive and control | |
| Drive motor power (servo) | 1 kW |
| Lifting motor power | 0.8 kW |
| Braking | Electromagnetic |
| Operating system | Android 11 + Linux (Ubuntu) |
Specifications may change without notice. Final configuration is confirmed at the time of quotation.
Beyond the flagship RoboLift: pallet movers, a stacker, a counterbalance truck, a compact single-arm and an ultra-low under-ride forklift. All are driverless, all run on the same fleet platform.

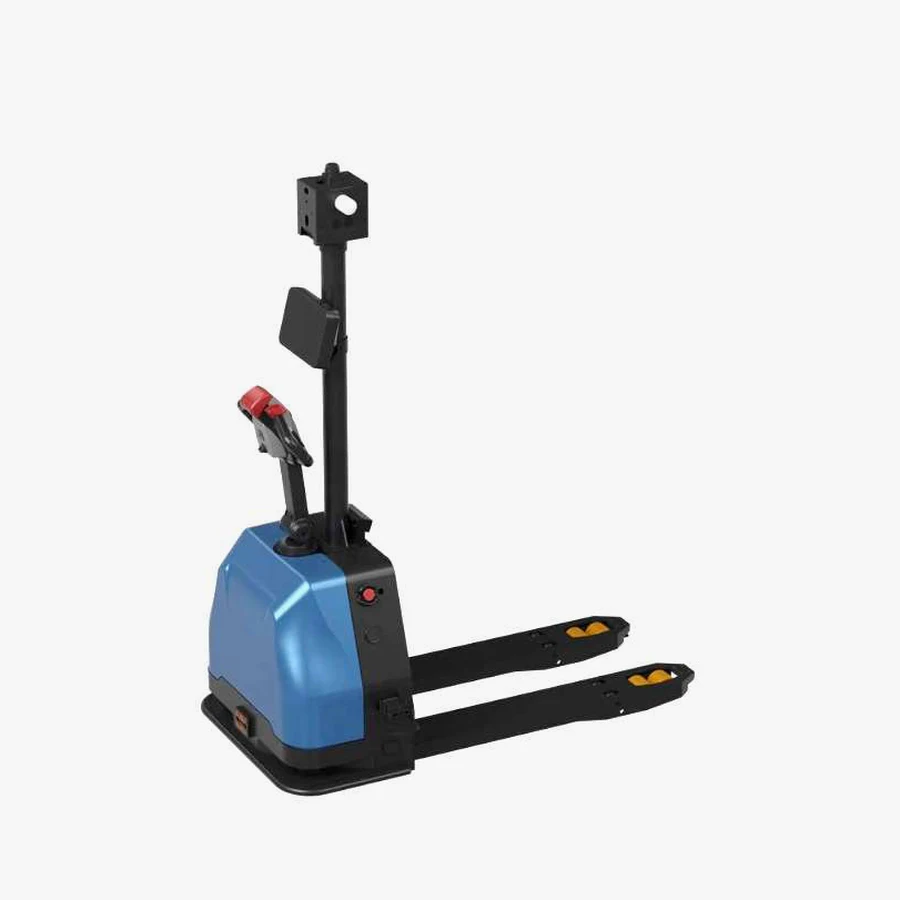

| RoboLift P1500 | RoboLift P2000 | RoboLift ST1500 | RoboLift CB2000 | RoboLift SA300 | RoboLift UR1000 | |
|---|---|---|---|---|---|---|
| Type | Pallet | Pallet | Stacker | Counterbalance | Single-arm | Under-ride |
| Rated load | 1,500 kg | 2,000 kg | 1,500 kg* | 2,000 kg* | 300 kg | 1,000 kg |
| Dimensions L × W × H | 1,610 × 824 × 2,120 mm | 1,638 × 1,005 × 2,080 mm | 1,700 × 1,004 × 2,180 mm | 2,579 × 1,050 × 1,847 mm | 914 × 400 × 1,502 mm | 1,296 × 1,226 × 183 mm |
| Forks (T / W / L) | 55 / 170 / 1,150 mm | 55 / 170 / 1,150 mm | 60 / 170 / 1,150 mm | 40 / 122 / 1,100 mm | 480 × 300 mm (L × W) | 38 / 172 / 1,230 mm |
| Outside fork width | 685 mm (600 / 540 options) | 685 mm (600 / 540 options) | — | — | — | 610 mm |
| Lifting height | — | — | — | 2,100 mm | 70 ± 5 mm (customisable) | — |
| Speed | 1.5 m/s, adjustable | 2.0 m/s, adjustable | 1.5 m/s, adjustable | Up to 2.2 m/s | 0.8 / 1.4 m/s | 1.5 m/s, adjustable |
| Turning aisle / radius | 2,200 mm aisle | 2,100 mm aisle | 2,300 mm aisle | 2,910 mm aisle | 600 mm radius | 1,465 mm aisle |
| Climbing capacity | ≤ 5° | ≤ 5° | ≤ 5° | ≤ 5° | — | — |
| Positioning accuracy | ±5 mm / ±1° | ±5 mm / ±1° | ±5 mm / ±1° | ±5 mm / ±1° | ±10 mm / ±1° | ±5 mm / ±1° |
| Battery | 24 V 100 Ah | 24 V 205 Ah | 24 V 205 Ah | 48 V 205 Ah | 48 V 35 Ah (NCM) | 48 V 40 Ah |
| Operation time | > 8 h continuous | > 8 h continuous | > 8 h continuous | > 8 h continuous | 8 h | > 8 h continuous |
| Charging time | 2.5 h | 4 h | 4 h | 6 h | ≤ 1.5 h (10–80%), auto / manual | 1 h |
| Network | 4G / Wi-Fi | 4G / Wi-Fi | 4G / Wi-Fi | 4G / Wi-Fi | — | 4G / Wi-Fi |
* RoboLift ST1500 is also available as a 2,000 kg version, and RoboLift CB2000 as a 1,500 kg version. Specifications may change without notice; final configuration is confirmed at the time of quotation.
Read the complete guide to how RoboLift maps, schedules, stays safe and charges, plus a site-readiness checklist.
Read the RoboLift guideSend us your site layout, pallet types and daily moves. We'll suggest the right RoboLift setup and fleet size.
